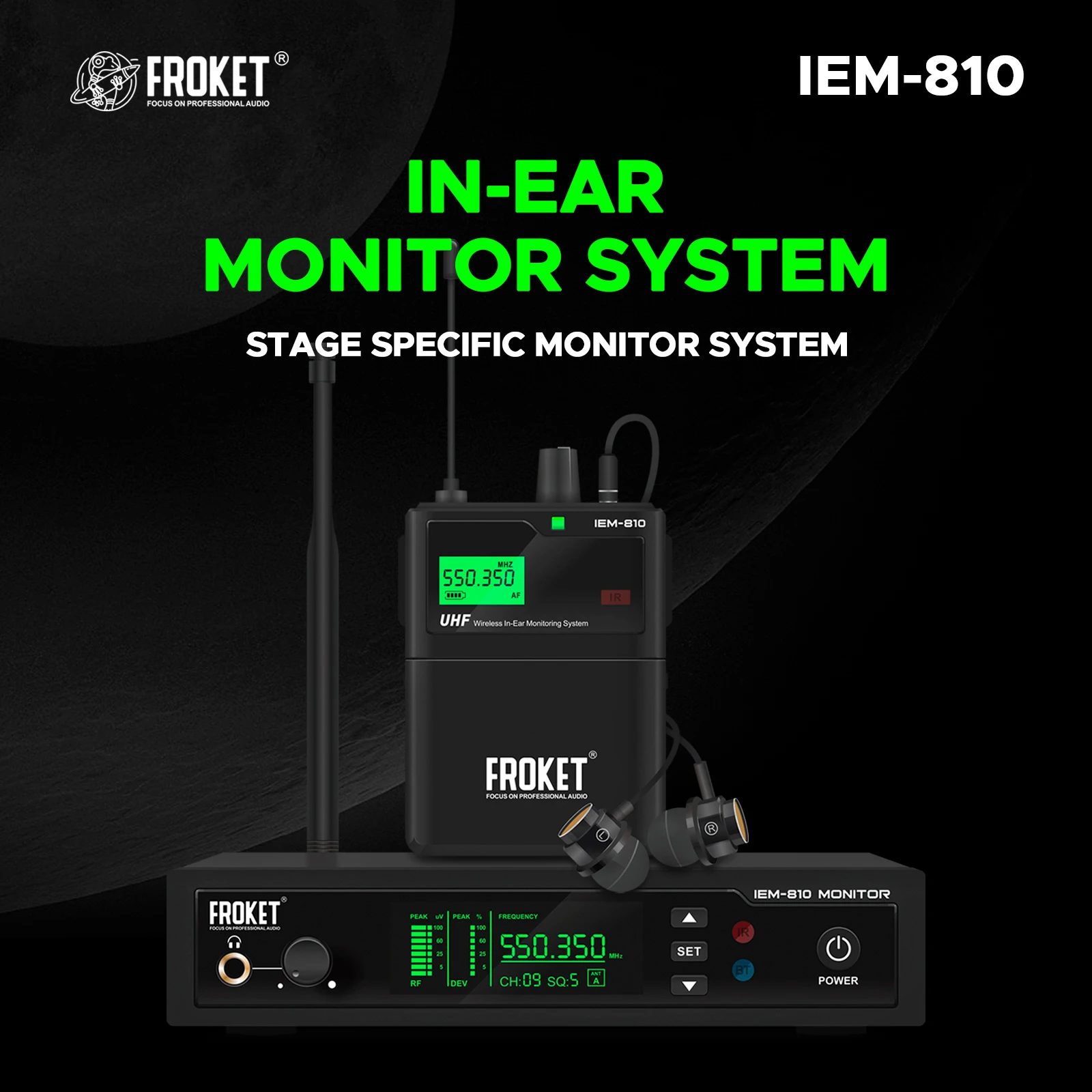

IEM-810 UHF mono wireless in-ear monitoring system, transmission distance 100, Bluetooth 5.0, for professional stage, concerts

GREAT UHF BAND:

This monitor in-ear monitoring system uses UHF audio signal transmission to improve overall performance, anti-degradation, anti-serialisation, stronger and more stable signals and better signal-to-noise ratio. The frequency range is 510-580 MHz. 100 preset frequencies for each channel can be switched at will, and no crosstalk when used in multiple groups.

Functional design:

Transmitter is equipped with LCD panel for displaying RF and equipment usage, frequency and channel information. The receiver is equipped with an LCD display for monitoring battery level and frequency. You can press and hold the transmitter's ‘SET’ button for about 3 seconds, you will notice that the transmitter's ‘BT’ indicator does not light up and the Bluetooth function is turned off. To switch on the Bluetooth function, please repeat the above steps.

Suitable for use in a variety of locations:

The transmitter is made from a metal casing and the beltpack receiver is fitted with a clip for easy carrying. Good for stage, broadcast, studio, musician, band performance.
This in-ear monitor system has great compatibility features. Good for stage, broadcast, studio, musician, band performance.

Expandable monitor system:

This in-ear monitor system has great compatibility features. One transmitter can be connected to multiple receivers in an unlimited number, allowing for multiple simultaneous monitoring scenarios. It can meet your needs for multiple applications. And the receiver is compatible with high-fidelity in-ear headphones, allowing you to get clear sound quality and better noise isolation.

SPECIFICATION:

Modulation Method:n/4-DOPSKF
requency Range:530-580 MHz 1x100CHS
(Frequency of some orders is subject to actual products)
Sampling Ratio:48KHz
Transmission Rate:204.8Kbps
Dynamic Range: >90dB
Total Harmonic Distortion:<0.1%
Delay Time of Audio Transmission:<3ms
S/N Ratio:>96dB
Frequency Response:30~20KhzRX
Sensitivity:<-94dBm
Unique lD Address: YES

Beltpack Packing List:

Beltpack receiver×1
Headset×1
Note:The beltpack receiver can only be used with the IEM-810 wireless in-ear monitoring system.

1 Fanny Pack with Transmitter Packing List:

Transmitter × 1
Beltpack receiver × 1
Earphone × 1
Antenna×1
6.35mm audio cable×2
Power supply×1
Angle code×2
Instruction manual×1

2 Packing list of the beltpack with transmitter:

Transmitter × 1
Receiver with beltpack × 2
Earphone × 2
Antenna × 1
6.35mm audio cable×2
Power supply×1
Angle code×2
Instruction manual×1

Notes

This wireless in-ear monitoring system works with over 100 beltpack receivers. You can purchase additional beltpack receivers to suit your needs. After you place your order and you need other power plugs, you can message us which power plug you want.
